Outdoor High Quality LED Strip Wall Washer Lighting

Outdoor High Quality LED Strip Wall Washer Lighting

Compare to standard strip,it's concentrated lighting and longer irradiation distance with higher utilization efficiency and higher center illumination under the same luminous flux.

Optimize the structure design and improve the optical efficiency. The material is resistant to flame retardant and UV;

5M/roll, can also cut as required length;

Can reach IP65/IP67 protection level,used indoors and outdoors.

Ibgħat Email Lilna Ikkuntattja Issa

Dettall tal-Prodott Feedback issa

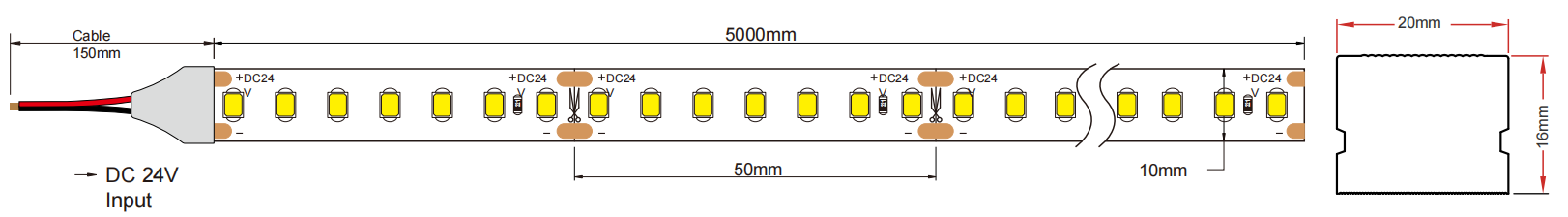

Vertical bend 30° wall washer W20*H16mm

PRDUCT FEATURES

SMD2835 silicone extrusion

.Compare to standard strip,it's concentrated lighting and longer irradiation distance with higher utilization efficiency and higher center illumination under the same

luminous flux.

.Optimize the structure design and improve the optical efficiency. The material is resistant to flame retardant and UV;

.5M/roll, can also cut as required length;

.Can reach IP65/IP67 protection level,used indoors and outdoors.

Outdoor High Quality LED Strip Wall Washer Lighting-

Market target:
.Indoor and outdoor linear wall washing lighting, indoor, outdoor, semi-outdoor lighting, eċċ.
Product advantage:
.The structure is unique compared with that of regular neon strips.No lens required, one extrusion optical molding, light Angle up to 30°.Effectively improve the illumination value. Longer irradiation distance, the output light utilization efficiency of the product under the same luminous flux is higher, and the center illuminance is higher. Up to 110Lm/W,can be achieved with high light efficiency LM80 test certified 2835 lamp beads,Injection molded cap,IP67 waterproof,has IP67 fast wire connector.Use silicone materials,Anti-Flame,UV resistance with 5 snin ta' garanzija.

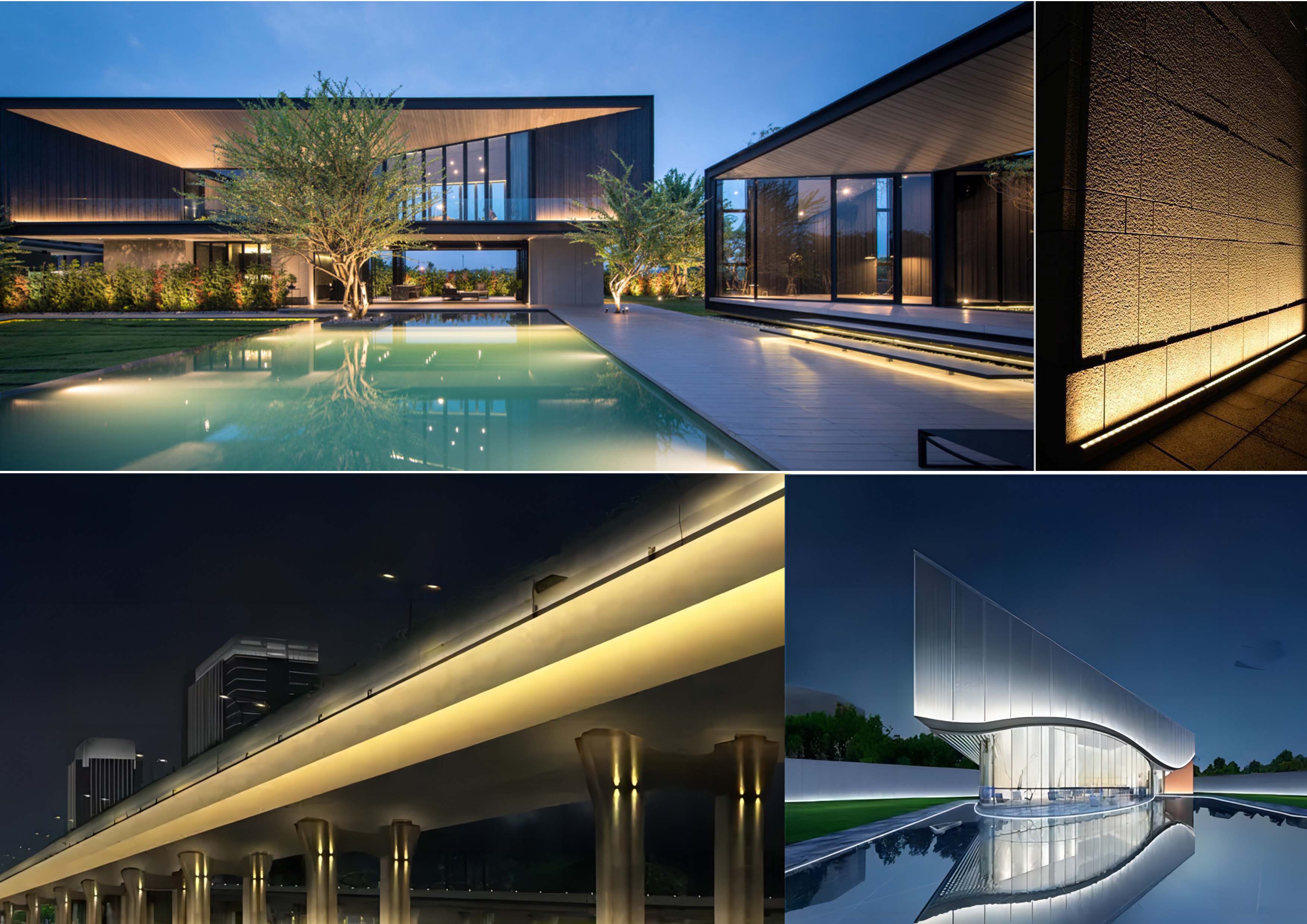

Usage scenario:
.Indoor and outdoor lighting include villa,historical building group exterior wall lighting,it can vertical bend,the minimum bending diameter is 200 mm.

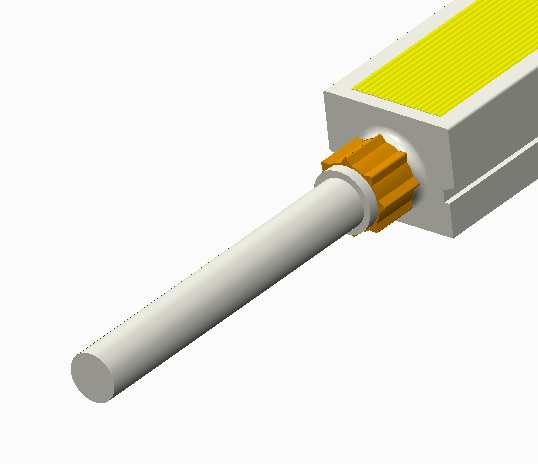

CABLE ENTRY METHOD

IES DATA

INSTALLAZZJONI

Indoor use IP20 wire, Add ring:Ensure the pulling force between the plug and the wire.

Outdoor use IP20 wire, Add wire ring and waterproof blocking:In order to ensure the pull of the plug and the wire, while preventing the wire water. (Outdoor standard)

Outdoor use Waterproof male and female joint,add wire ring and waterproof blocking:It is easy to install on site when the tension is guaranteed. (Optional outdoors)

Notice:

1. Luminous flux or CCT 2700K is 10% lower, or CCT 3000/3500K is 5% lower, for CCT 5000K/ 6500K is the some, compared with 4000K.

2. Energy efficiency dass of regulation (UE)201 9/2020 is E(CRI80) for 4000K and F(CRI80) for CCT, it waries depending on CRI and CCT.

3. Applying with extra heat sink is not necessary with sel-cooing capacity.

4. The transmission direction of data must be from PI to Po following the arrow printing on FPC for DMX version, and can't be made by

reverse connection, otherwise the strip will be out of control or even domaged.

Strip Code

Series	Item Code	Input Voltage	CCT/K	Lm/M	Lm/ft	Lm/W	Angle	Klassifikazzjoni tal-IP	Max Leg
Serje STA 50mm cut	MN328W140Q80-D027T1A10	24V	2700k	1553	485	97	30°	IP67	5m
	MN328W140Q80-D030T1A10	24V	3000k	1640	512	103	30°	IP67	5m
	MN328W140Q80-D040T1A10	24V	4000k	1726	539	108	30°	IP67	5m
	MN328W140Q80-D050T1A10	24V	5000k	1743	545	109	30°	IP67	5m
	MN328W140Q80-D065T1A10	24V	6500k	1760	550	110	30°	IP67	5m

Optical

LED type	2835LED
LED Type	140LED
Qawwa	16W
Color rending index	85
Input Current/m	0.66A
Angolu tar-raġġ	30°
vultaġġ	24V
Operating Ambient temperature Ta	-20-45°C[-4~113F]

1 .Signage Lighting (outdoor advertising)
2. Outdoor or indoor decorative lighting (including bars,with excellent color reproduction and high power color dynamic application.)
3 .Architectural Contour lighting(High-end hotels and waterfront parks, architecture facade lighting solution)
4. Waterproof lighting (Swimming pools,underwater applications and resorts, and luxury yachts,decorations, amusement parks and aquarium)

Q1: What is your minimum order quantity?
A:Normalment MOQ huwa 50m, imma naċċettaw ukoll ordni żgħira għal traċċa.

Q2:Is a free sample order available?
A: Naturalment, tista 'tiċċekkja l-kwalità tagħna qabel tordna. Jekk għandek xi rekwiżiti, jekk jogħġbok ikkuntattjana.

Q3:Kemm idum il-ħin taċ-ċomb?
A: Normalment,ħin taċ-ċomb tagħna huwa 7-10 ġranet tax-xogħol.Jiddependi fuq il-kwantità tal-ordni.Imma jekk l-ordni hija urġenti, nistgħu napplikaw għal production.Bulk urġenti tordna tieħu 20-25 jiem.

Q4:Jista 'l-istrixxa LED tkun personalizzata?
A:Żgur,nistgħu nipproduċu bħala l-ħtieġa tiegħek bħal LEDs,qawwa,tul u waterproof level.We joffru wkoll OEM&ODM.

Q5:X'inhi l-garanzija tiegħek?
A:Għandna 3 snin u 5 snin ta' garanzija

Q6:Inti tforni vjeġġ bil-baħar?
A: IVA,Għandna l-aġenzija tat-tbaħħir tagħna stess FOB Guangzhou,provvista FCL&LCL.

Q7:It-tagħmir tad-dawl tiegħek għandu ċertifikati CE jew aktar?
A: Iva, għandna ċertifikat CE u UL, ROHS, TQAL,ETL,TUV,FCC,Stilla tal-enerġija eċċ. Għandna wkoll IATF/ISO/TS 16949 ċertifikat.

Q8:Huwa possibbli li tpoġġi l-logo tagħna fuq l-ippakkjar tal-prodott jew tal-prodott tiegħek?
A:Iva, għandna fabbrika 6floors, merħba biex tippersonalizza l-marka tiegħek, LOGO, kulur, manwal tal-prodott, ippakkjar, eċċ.
The minimum order quantity depends on different type of strip.
